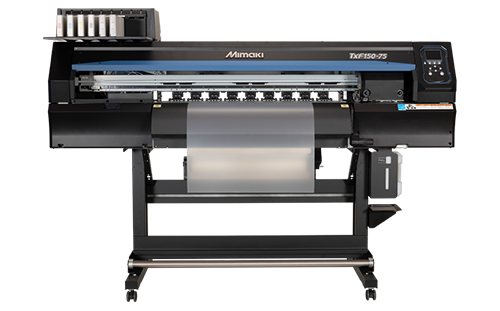

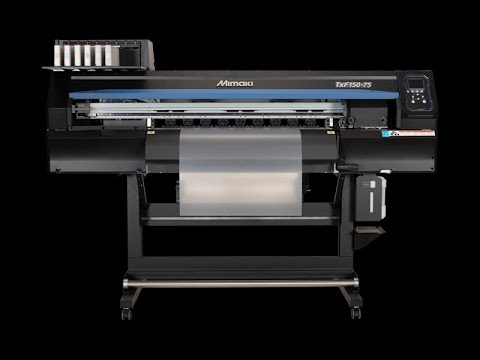

Mimaki TxF150-75 DTF Printer


"TxF150-75" is a Mimaki's first DTF (direct-to-film) printer with a maximum printing width of 80 cm for producing DTF print transfer sheets.

"PHT50" heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products “OEKO-TEX®”.

Mimaki has adopted a degassing ink design that uses aluminum packs as the printer's ink packaging form, as well as a white ink circulation function MCT (Mimaki Circulation Technology)*1. The new printer also features Mimaki's NCU (Nozzle Check Unit)*2 and NRS (Nozzle Recovery System)*3 technologies that support stable operation. They ensure continuous printing without stopping the operation to support customers' productions.

*1 Mimaki Circulation Technology: White ink circulation function
*2 Nozzle Check Unit: Missing nozzle detection function
*3 Nozzle Recovery System: A function to substitute missing nozzles with other nozzles.


TxF150-75 Features

Excl. GST

Inc. GST

In Stock

Product info

Print head On-demand piezo head
Printing resolution 720dpi, 1,440dpi
Ink Type/Color Heat transfer pigment ink PHT50 (C, M, Y, K, W)
Capacity 600ml ink pack (500ml for white only)
Circulation function Available only for white ink
Maximum print width 800mm (31.5 in)
Media Maximum width 810mm (31.9 in)
Thickness 1.0mm or less
Roll weight 45 kg (99.2 lb) or less
Interface Ethernet 1000 BASE-T / USB2.0 Hi-speed
Power specifications Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption 100V system: 0.9kW or less, 200V system: 1.2kW or less
Dimensions (W×D×H) 1,965 x 700 x 1,392 mm (77.4 x 27.6 x 54.8 in)
Weight 126kg (277.8 lb)
